BERRIA BRAVO ELITE DEORE

COMPONENTS

• FRAME

  Bravo 6, XCO WC Racing Geometry BGC with 28mm travel SOFTEX Suspension System, Full carbon HM2X, Triple monocoque, BB92 Bottom bracket, Full internal cable system ICS2, MTB Acros Headset ZS56 with Blocklock 150º, Post Mount 160mm, 29x2.40" max. tyre, BOOST Thru axle 12x148mm, UDH standard



  FORK

  RockShox RECON RL, Damper Motion Control, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Tapered steerer, Rake 51, 32 mm straight wall aluminium, Diffusion Black, 100mm travel



  MATERIAL

  Full carbon fiber HM2X



  HANDLEBAR

  Avanforce AF3, Aluminum 6061, Ø31,8mm, width: 740mm



  SEATPOST

  Avanforce AF3, Aluminum 6061, 0 offset, Ø27,2, length: 350, 400mm



  SADDLE

  Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm



  SEAT CLAMP

  Universal Derailleur Hanger



  WHEELS

  Avanforce TRYP30 EVO 29", 15x110, Boost 12x148mm, TLR, Center Lock, internal width 30mm



  CONTROL CHANGES

  Shimano Deore, SL-M6100-R, 12s, Rapidfire Plus



  GEAR CHANGES

  Shimano Deore RD-M6100, Aluminum Cage, 12s



  CRANKS

  RACEFACE Affect, 34T, 170-175mm



  CHAIN

  CN-M6100, 118 Links

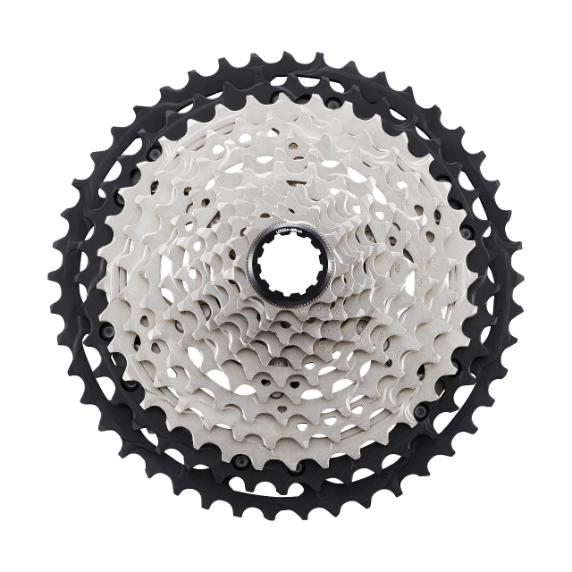

  CASSETTE

  CS-M6100-12, 10-51T



  BB (BOTTOM BRACKET)

  Shimano PF92 MTB



  BRAKE

  SRAM Level Black, 2 Piston
