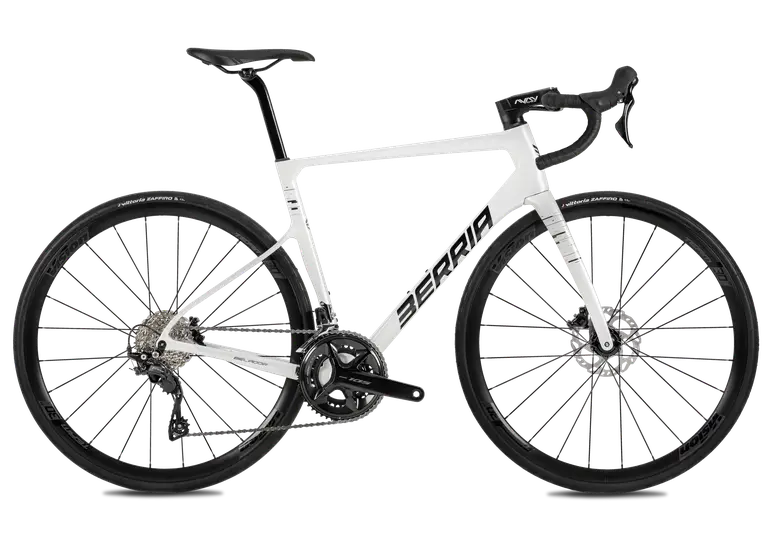

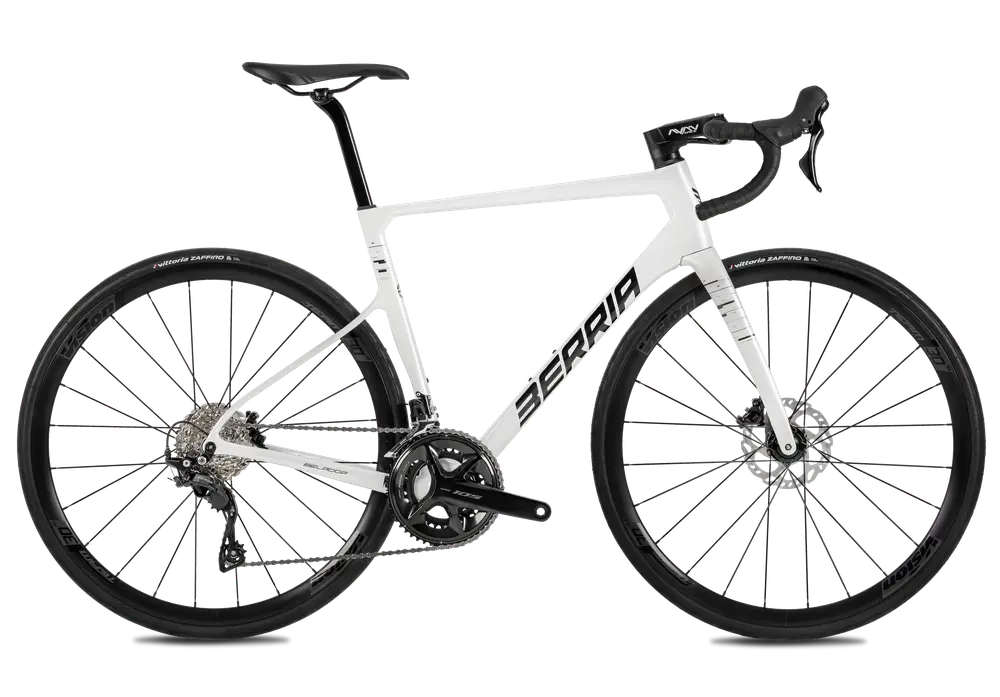

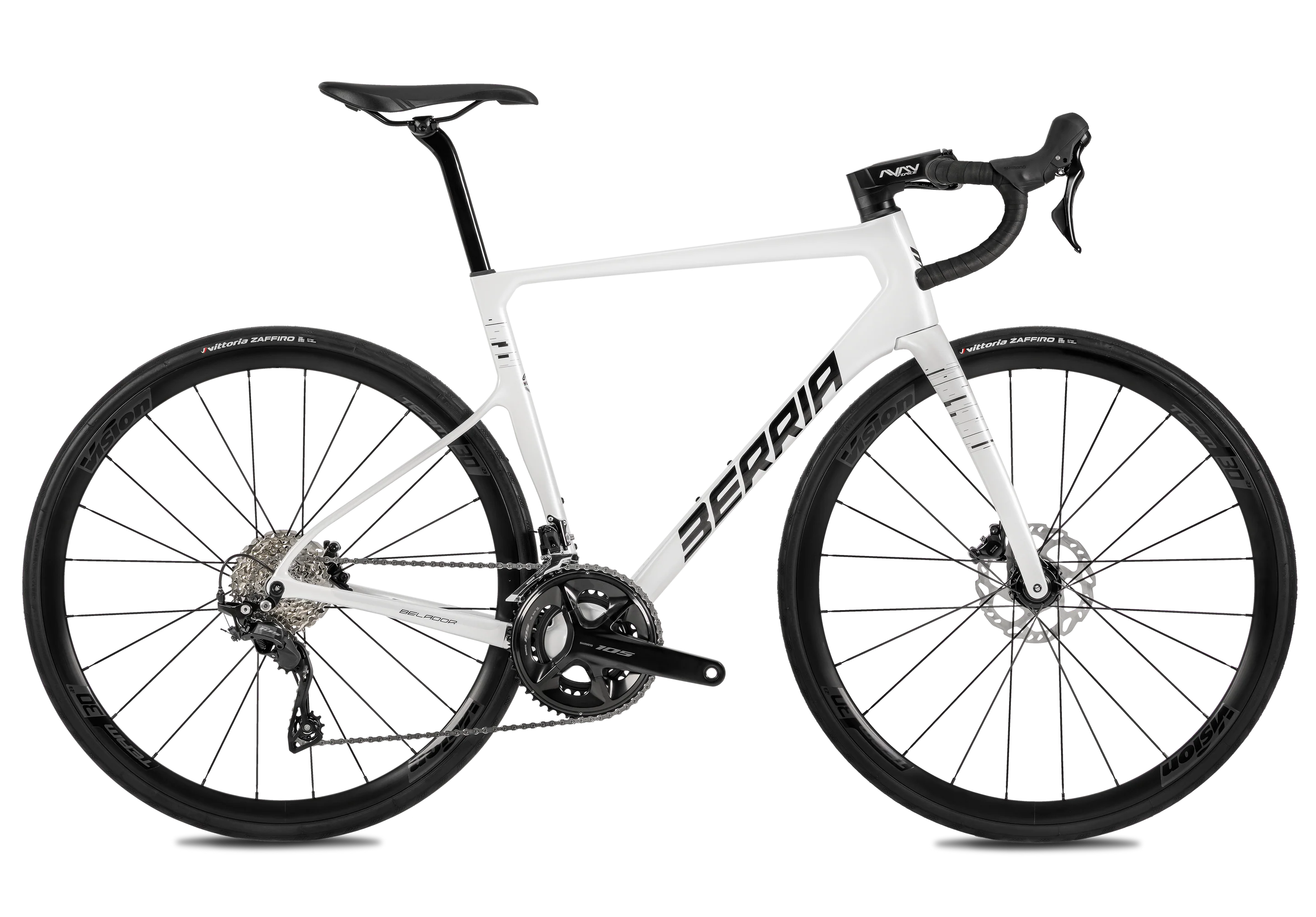

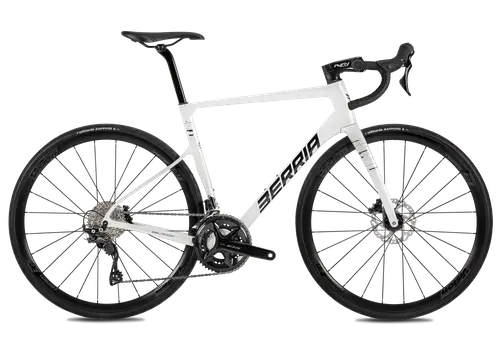

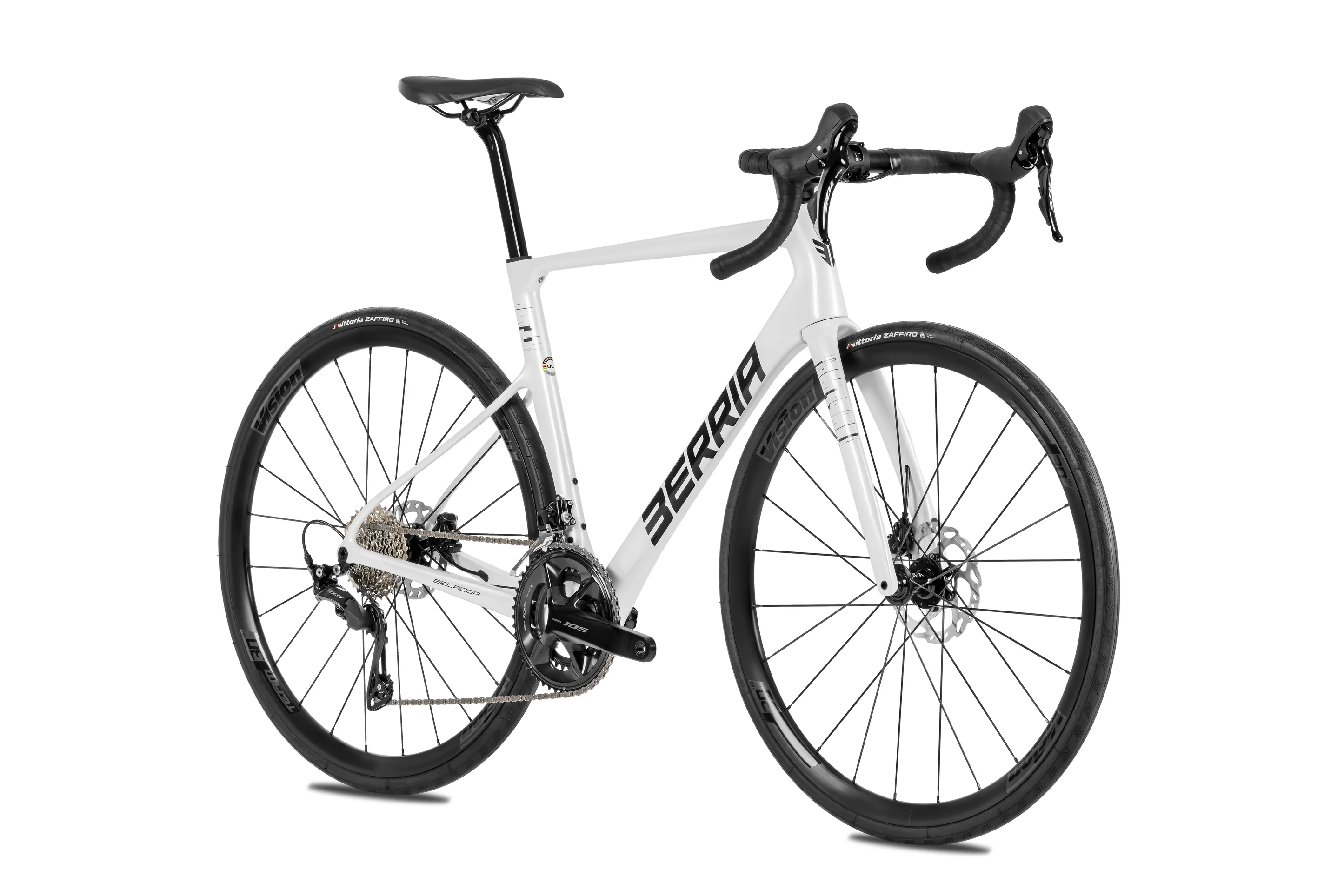

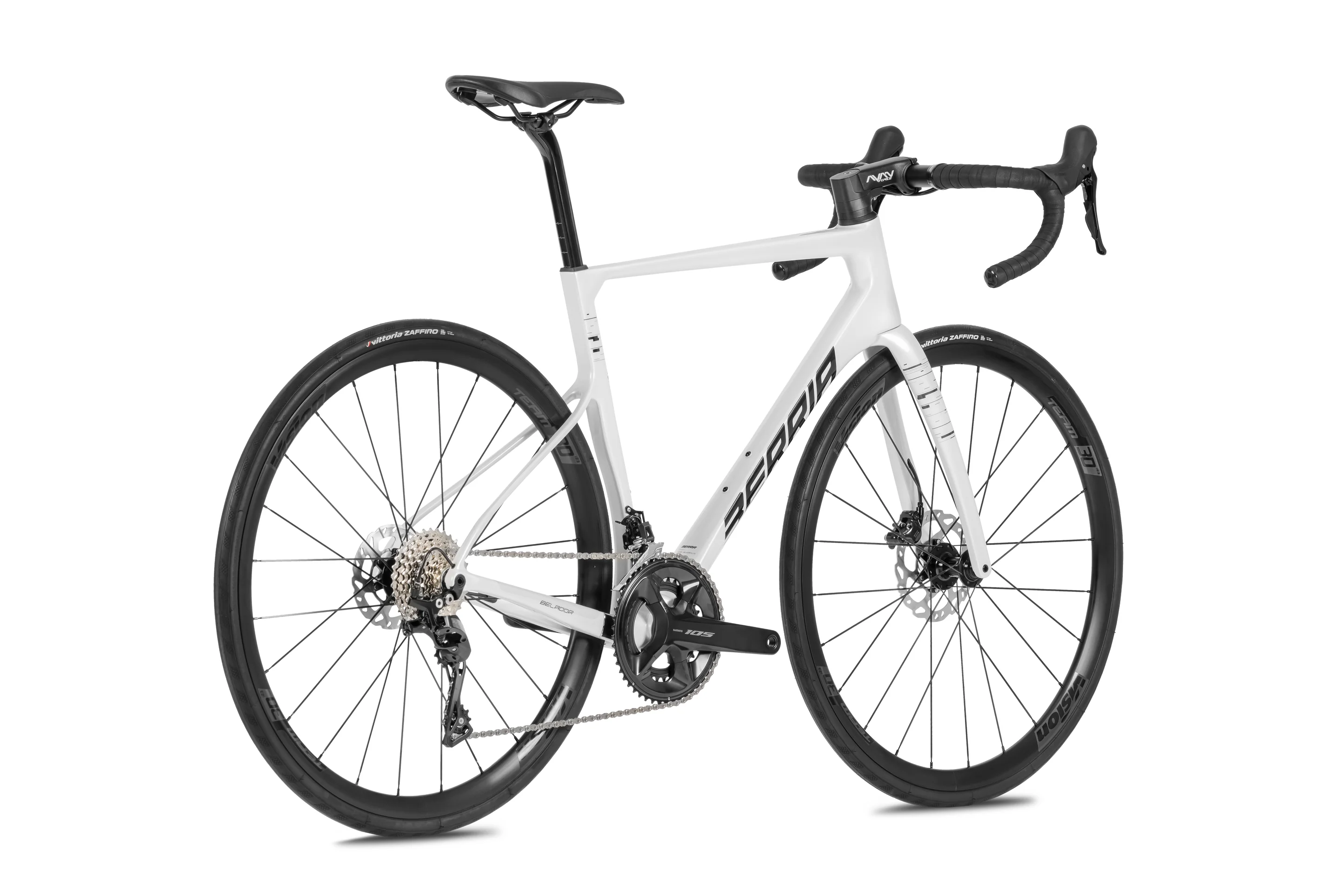

BERRIA BELADOR ELITE 105

COMPONENTS

• FORK

  Belador Blade 5 full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered head tube compatible, Flat Mount System brake, 700x34c maximum tyre, Thru axle 12x100mm Speed release standard

• MATERIAL

  Full carbon fiber HM2X

• HANDLEBAR

  Avanforce AF3, Alloy 6061, width: 400, 420, 440mm

• SEATPOST

  Belador 5 SP, UD Carbon, 15 mm offset, ISP technology

• SADDLE

  Selle Royal 2058HRN, Steel rails, length: 285mm, width: 145mm

• SEAT CLAMP

  Direct Attachment

• WHEELS

  Vision Team 30, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock

• CONTROL CHANGES

  SHIMANO 105 DISC BRAKE, ST-R7120 DUAL CONTROL

• GEAR CHANGES

  SHIMANO 105, RD-R7100, 12s

• DERAILLEUR

  SHIMANO 105, FD-R7100, 12s

• CRANKS

  SHIMANO 105, FC-R7100 Crankset, 50x34T, 170-172,5-175mm

• CHAIN

  CN-M6100, 118 Links

• CASSETTE

  CS-R7100, 11-34T

• BOTTOM BRACKET

  BB86 Token

• BRAKE

  SHIMANO 105 BR-R7120, Hydraulic Disc





  Our Active Stay Technology increases vertical flexion of the seat stays without compromising the necessary rigidity for a responsive ride.The result is maximised traction and ride compliance over the toughest terrain, with direct transfer of power translating into more speed.



  The completely internal ICS2 wiring system achieves unbeatable integration and aesthetics, as well as protecting the system against all external agents that may affect its functionality.



  The 1.5 -1.5 oversized steering system increases the rigidity of the head tube, providing more precise and safer driving, increasing stability when cornering.



  EPS is the inner core made of a self-formulated polystyrene that acts by expanding inside the frame during the curing phase. During this process, the temperature and pressure are controlled to guarantee the carbon compaction process in its different zones. This innovative system allows optimal carbon stratification and the elimination of excess resin. With EPS you get a high quality frame with a compact, strengthful and lightweight structure.



  HM2X carbon is engineered using T700 and T800 Toray intermediate-modulus fibres. Used strategically across key frame areas, this dual blend of carbon material is laid up to produce an optimal combination of stiffness while also prioritising comfort.



  The triple mould curing system is nowadays the best in tech that provides the greatest results in terms of carbon finish. Dividing the frameset by Front Triangle, Chain stays and Seat stays molds the final product achieves an optimal pressed carbon which leads to a perfect weight to stiffness weight ratio products.
