Favero Powermeter Assioma UNO

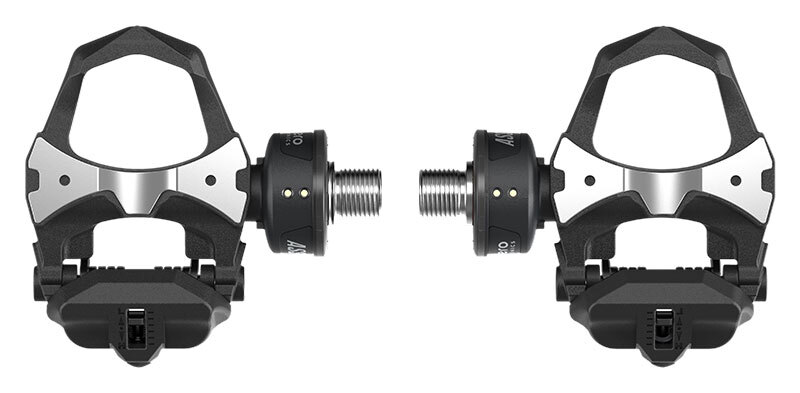

Cycling power meter with power sensor on the left pedal. The single-sided power meter pedals with upgrade option

Overview

Easy to install Install and transfer your Assioma from one bike to another just like normal pedals, easily and without extra tools. Just screw them on your bike crank arms and you are ready to pedal

IAV Cycling Dynamics

Assioma supports the advanced metrics IAV Cycling Dynamics: IAV Power Phase and IAV Rider Position. These metrics, combined with the classic power data, allow analyzing in details the pedaling technique and how the cyclist"s position on the bike influences performances. • IAV Power and gyroscope Unlike others, the measurements of Assioma are not affected by errors related to very irregular pedaling (eg. sprint uphill) or the use of oval chainrings. This is because Assioma is able to detect the actual instantaneous angular velocity of the pedal stroke, thus giving you the degree of accuracy of ±1% in any situation. Not only in the laboratory

Bluetooth and ANT+ SMART

Assioma communicates via Bluetooth and ANT+ with bike computers and smartphones, both Android and iOS

Accuracy and consistency Assioma provides accurate watt measurements with a great consistency and stability in the actual on-road use conditions and at any temperature between -10°C and 60°C. Thanks to the ATC (Automatic Temperature Compensation) too

Waterproof, resistant and light

Assioma is the lightest pedal-based power meter ever made. Thanks to its compact design, it never interferes with the pedaling. Not even when cornering. The power sensors are protected in a bi-component resin block, extremely resistant to shocks and completely waterproof

Rechargeable and green

Assioma is the only pedal-based power meter with integrated rechargeable batteries; a single charge ensures 50 hours of use at least

Tested and guaranteed

 Favero Electronics produces in-house each Assioma and thoroughly test it individually: fully satisfying the standards required by current regulations

Technical characteristics

Power sensor on the left pedal

Cadence sensor: included, inbuilt

Gyroscope: included, inbuilt

Power calculation system: IAV (Instantaneous Angular Velocity-based)

IAV Cycling Dynamics: yes

Oval-chainring compatible: yes

Total weight per pedal: 151,5g (battery included)

Battery type: rechargeable lithium battery

Battery life: at least 50 hours

Radio communication: Bluetooth v4.0, ANT+ PWR profile (CT + PO)

Accuracy power measurement: ± 1%

Temperature compensation: -10°C / +60°C

Water resistance degree: IP67

Q-factor: 54mm

Hardware upgrade to Assioma DUO always available

Compatible cleats: Original LOOK Kéo and Favero cleats (red and black

Bike type: racing/road

Made in Italy

Warranty: 2 years

Package content

Left pedal with power sensor

Right pedal without power sensor

(Battery charger including plugs (EU, US, UK, AU

One to two-meter long micro-USB/USB cable with magnetic connector

(Two red cleats float 6° (LOOK Kéo compatible

Hex key and 4 washers for the installation

User manual
